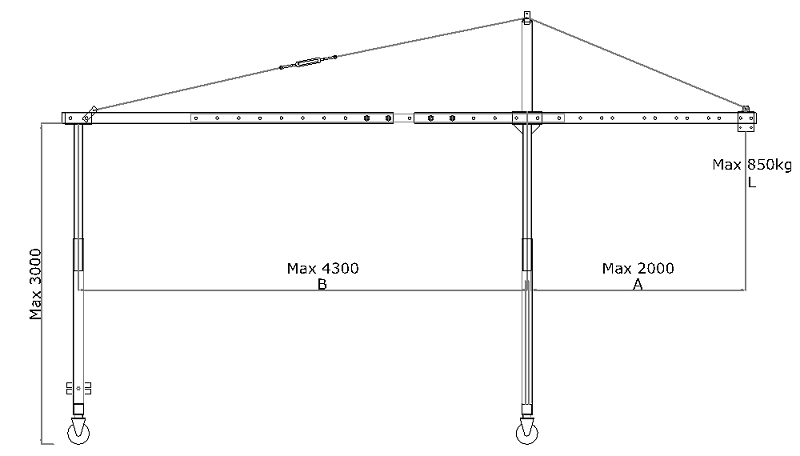

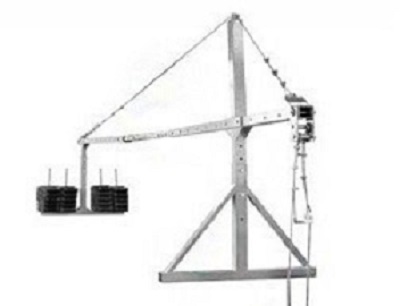

Alpha Suspension beams are made of adjustable modular steel sections which are easy to assemble. The sections can be adjusted depending on the site conditions, by adjusting the overhang and the counterweight parts.

Alpha is designed to be raised up to 3m height to span over any obstruction at the site, such as, parapets, upstands or air conditioning ducts.

The system is a free-standing equipment which does not require any additional of support or anchoring, which makes the equipment very useful for construction works, as well as for use on finished structures

The Alpha Suspension beams are available in galvanized steel and non-galvanized steel with cast iron counterweights.The maximum load capacity of the equipment is 850 kg.

PURPOSE

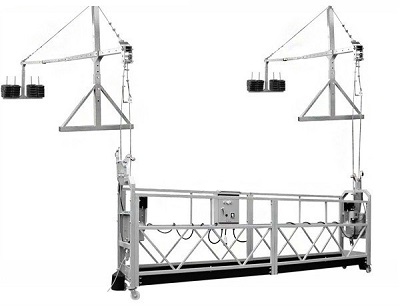

Alpha Suspension Beams for use on roofs or on any tall structures to suspend an access equipment or cradle for civil, architectural and maintenance works, as a temporary suspension.

FEATURES

• Beam can be raised to 3 metres if necessary
• Suspension point can be stretched up to 2.1m
• Customized options available to suit your needs

ADVANTAGES

• Can be used for any height
• No fixing required to the roof or any structure
• Easy to install and dismantle
• Heavy duty caster wheels for easy transfer on the roof
• Easy to transport and Easy to assemble.
• Low maintenance, Durable
